This new 6 ports 1S battery charger supports PH2.0 and BT2.0 at the same time. Moreover, the charging is faster when using 30W adapter. Compact, fast-charging, and portable, choosing a 1S battery charger that best suits your needs will no longer be difficult with this 6 Ports 1S charger & adapter.

Bullet Points

With BT2.0/PH2.0 two types of battery ports, the charger allows charging BT2.0 and PH2.0 battery at the same time.
By supporting multi-charging protocols including PD3.0/QC3.0/BC1.2, every port's charging current can reach 1A, which makes charging faster.
This portable 30W Type-C power adapter offers fast, efficient charging at home, or on the go.
The power adapter is compatible with any USB‑C-enabled device, you can also pair it with other devices to take advantage of the fast-charging feature.
Both EU and US adapters are provided for your choice.

Specifications

Item: 6 Ports 1S Battery Charger & Adapter
Input connector: Type-C
Input voltage range: 5-12V
Max input power: 30W
Max input current: 2.5A
Max charging current: 1A (Single-port)
Support battery connector: BT2.0 & PH2.0
Charging protocol: PD3.0/QC3.0 (5V/9V/12V) / BC1.2
Battery type: LiHV 4.35V
Dimensions: 79*46*19mm

6 port 1s charger and adapter specification

Support Fast Charging

The 30W power adapter supports multi-charging protocols including PD3.0 /QC3.0/ BC1.2, equipped with 6 ports 1S battery charger with a maximum charging current of 1A, which makes charging faster. 6pcs BT2.0 300mAh 1S batteries can be fully charged in about 25 minutes.

Charging will take significantly longer when using adapters below 30W or standard 5V/2A adapters, as each charging port receives less than 1A of current when all six ports are operating simultaneously. Note that some manufacturer-specific adapters (including certain Apple, Xiaomi, vivo, and OPPO models) may not support PD fast charging. For optimal performance, we strongly recommend using a 30W or higher PD fast-charge adapter.

Button Function

The function of the button is to switch the charge voltage: 4.35V.

The new batches' switch left side changes the "4.2V" to "OFF" as shown above.

LED Indicators

Green LED lights indicate the charging status of each battery slot.

Status	Description
Green light flashes	No battery detected
Green light on	Charging
Light off	Charging completed

Note: If the indicator light is off when no battery is connected to an output port, this indicates a faulty charging circuit - the port should not be used for charging.

Orange LED light reveals charging mode.

Status	Description
Orange light on	Low-power charging
Light off	Fast charging active

Recommendation: For fast charging, use a power adapter rated ≥30W.

6 Ports 1S Battery Charger & Adapter orange LED

FAQ

Each port has a Ph2.0 & BT2.0 connector, please DO NOT charge 2 batteries in one port at the same time. Otherwise, the battery life will be reduced or the battery will be damaged.

Package

1 * 6 Ports 1S Battery Charger
1 * User Manual

1 * 6 Ports 1S Battery Charger
1 * EU/USA Power Adapter
1 * Type-C to Type-C cable
1 * User Manual

Chargers & Straps

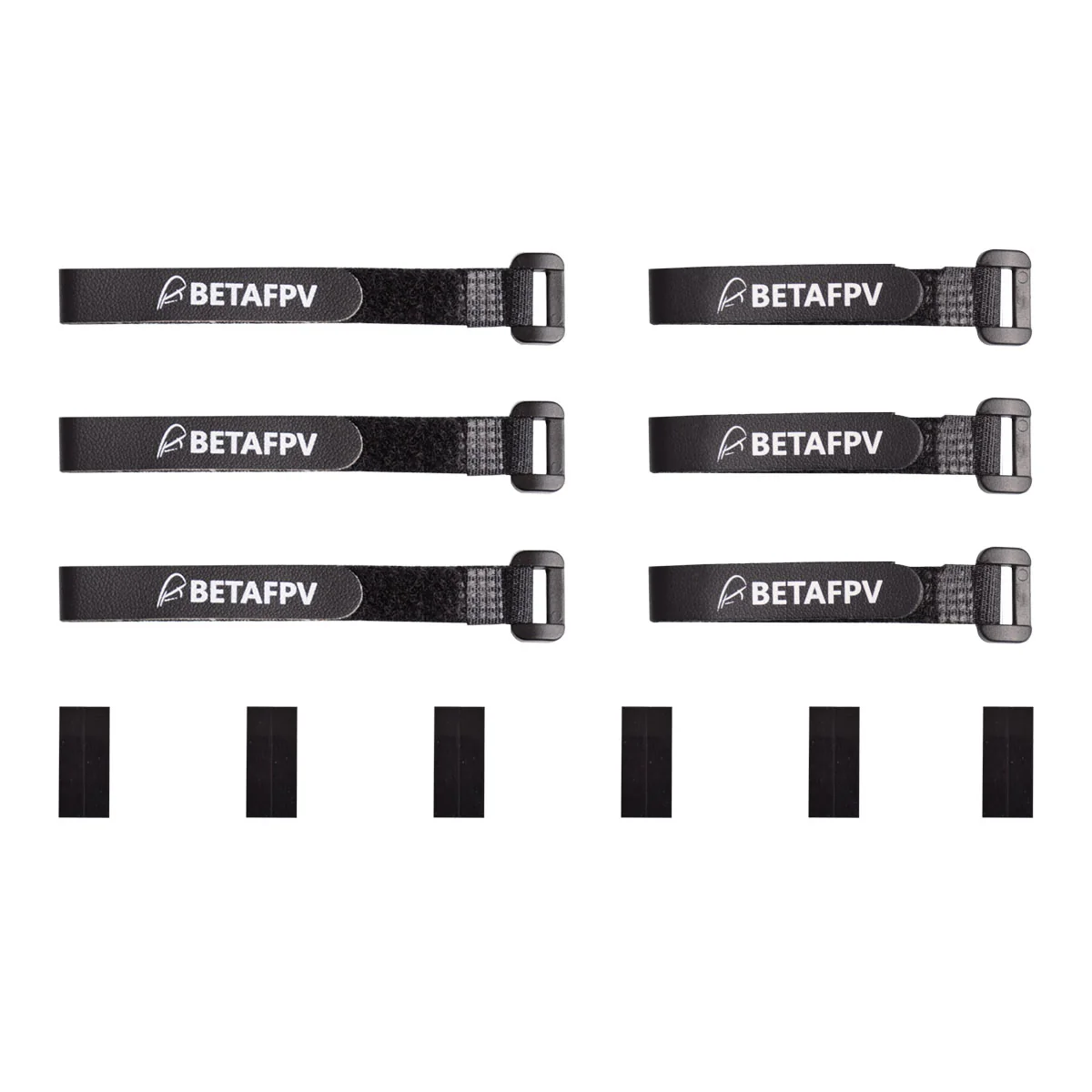

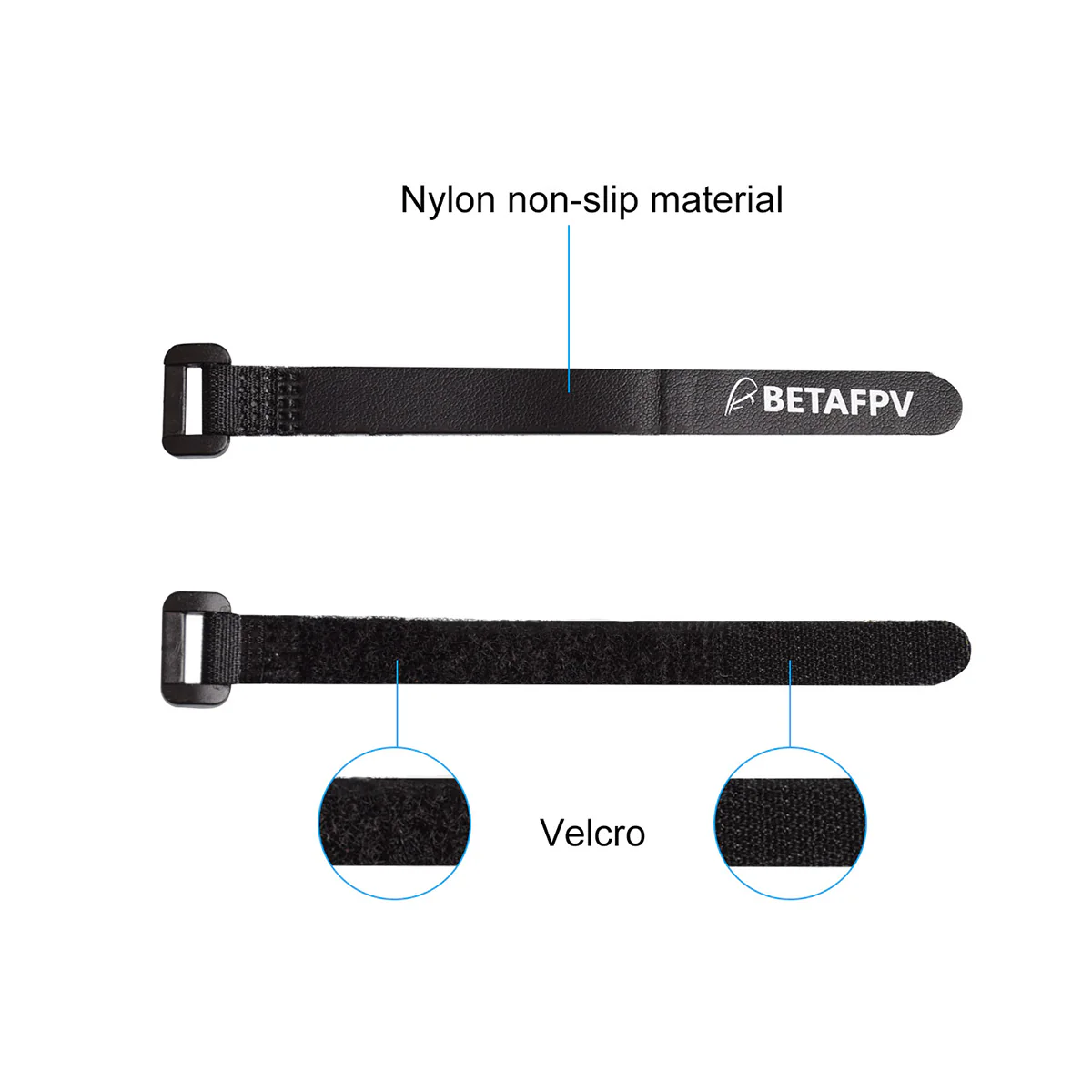

Lipo Battery Strap Kit

BT2.0 Battery Charger and Voltage Tester V2

6 Ports 1S Battery Charger & Adapter

BETAFPV LiteRadio Transmitter Neck Strap

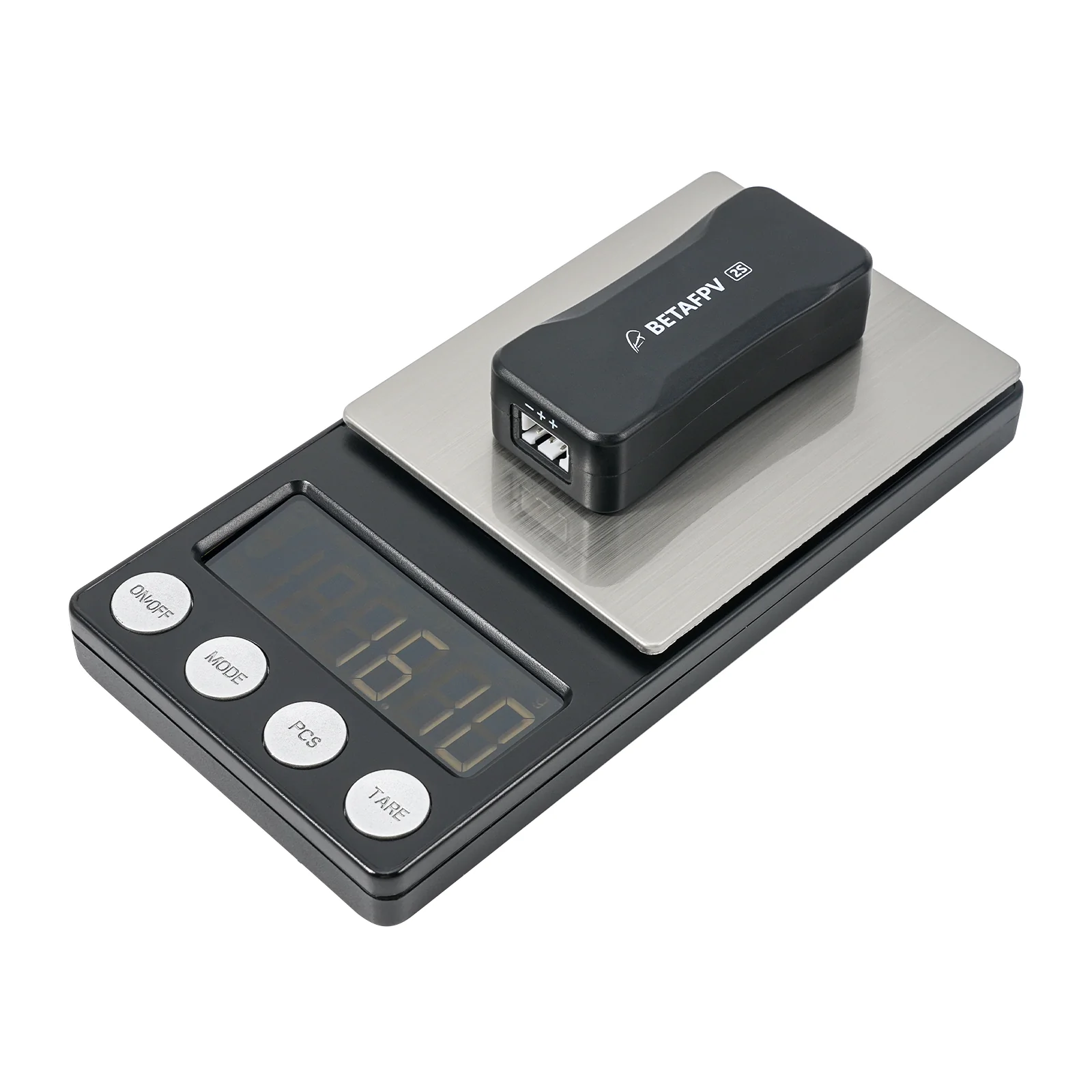

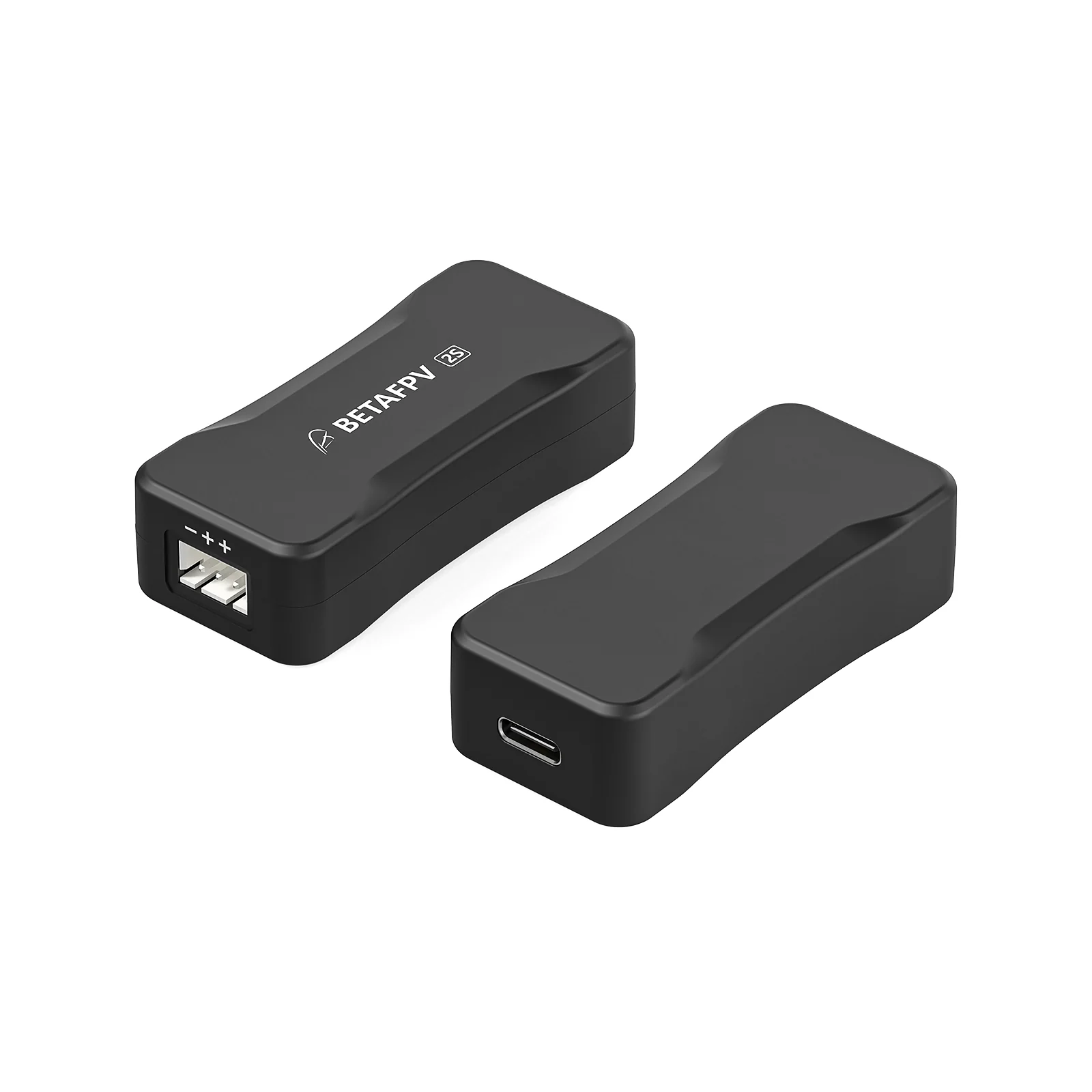

2S Battery Charger and Voltage Tester

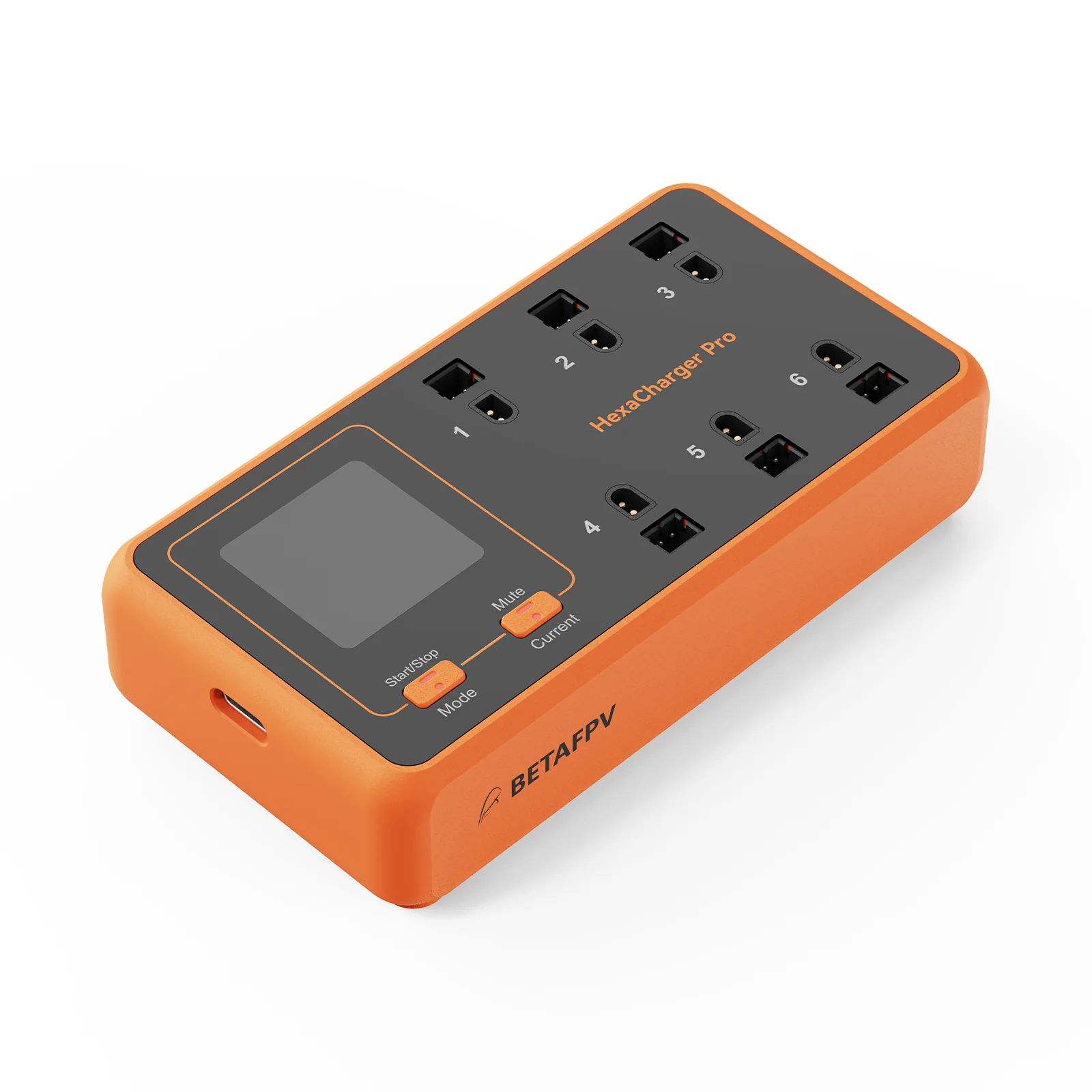

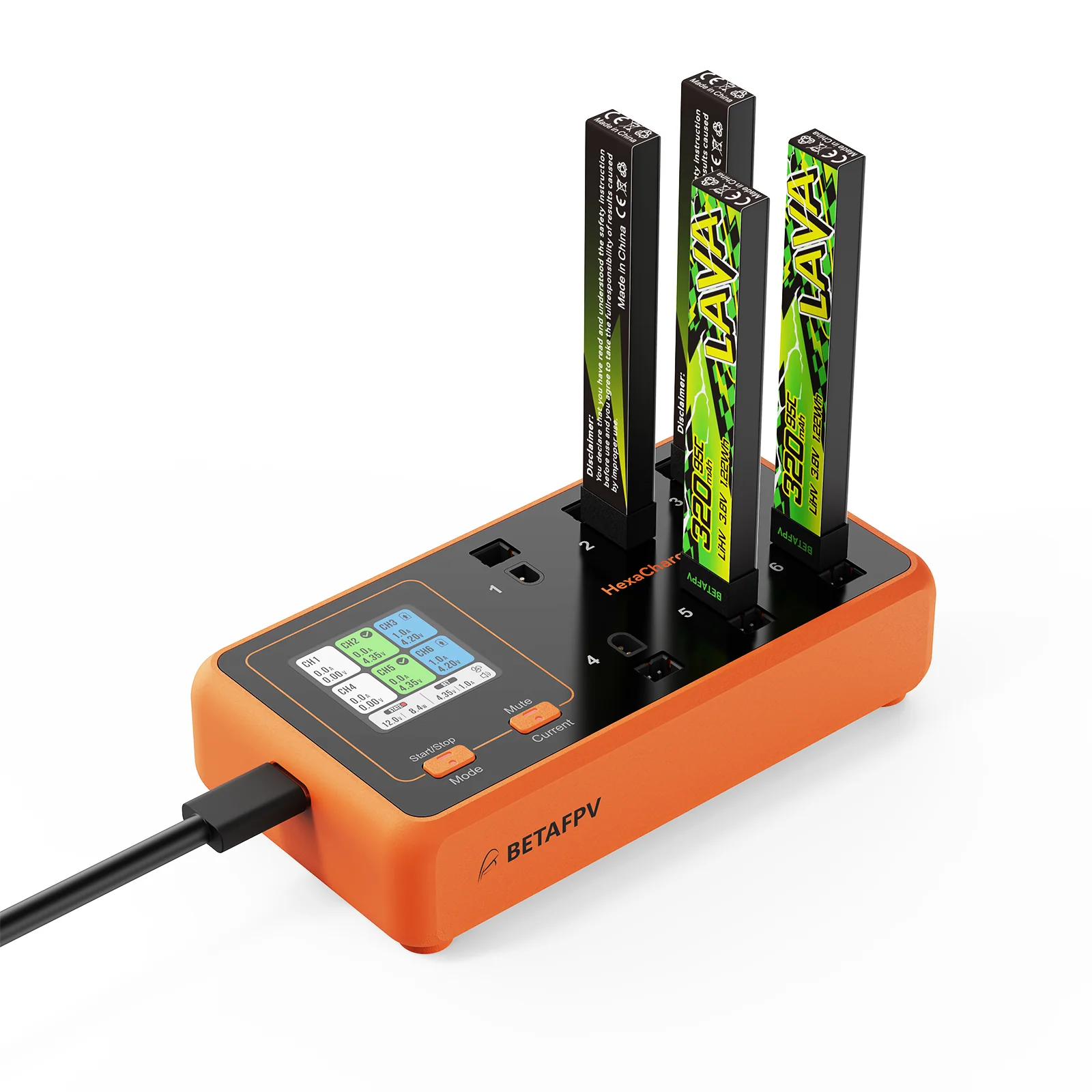

HexaCharger 1S Charger

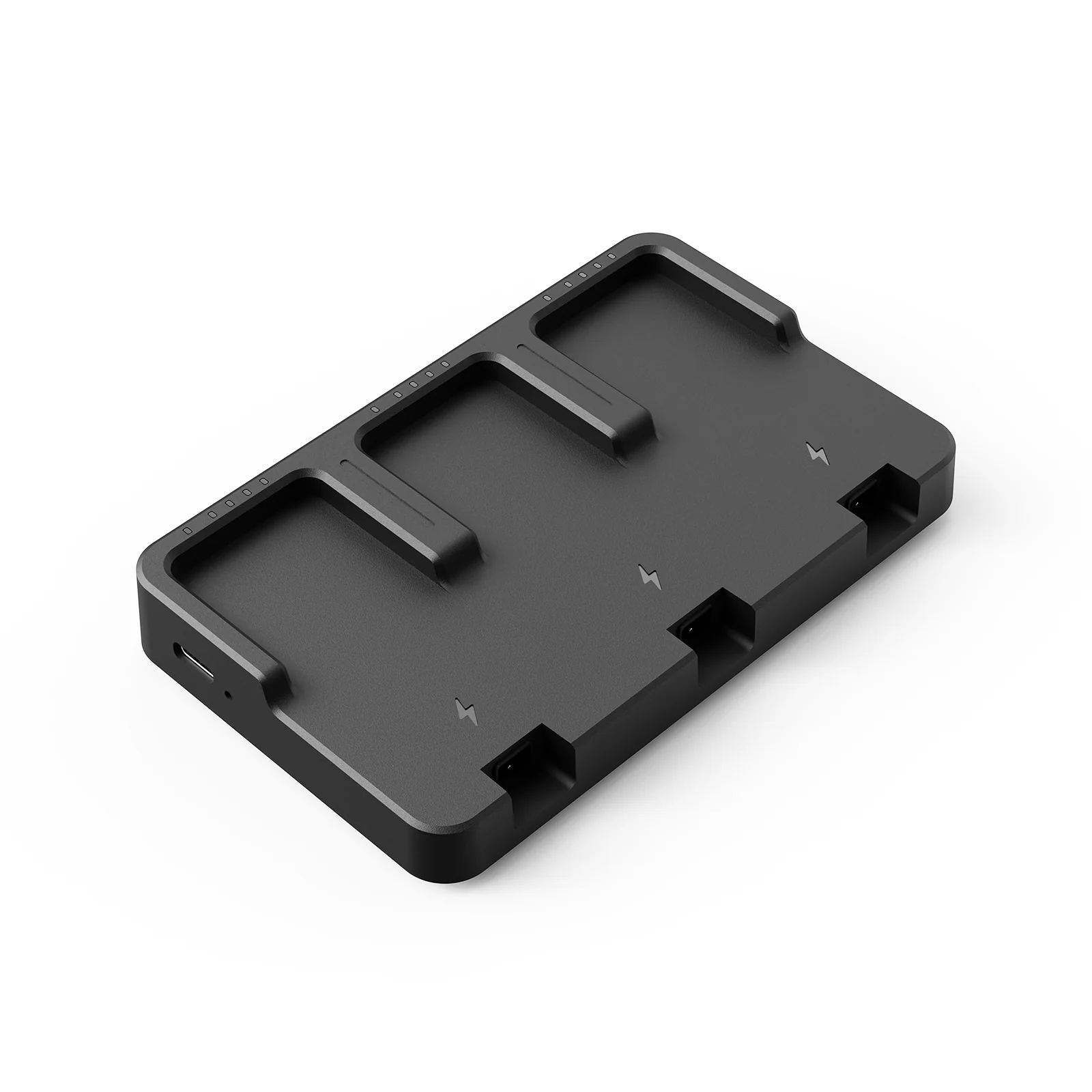

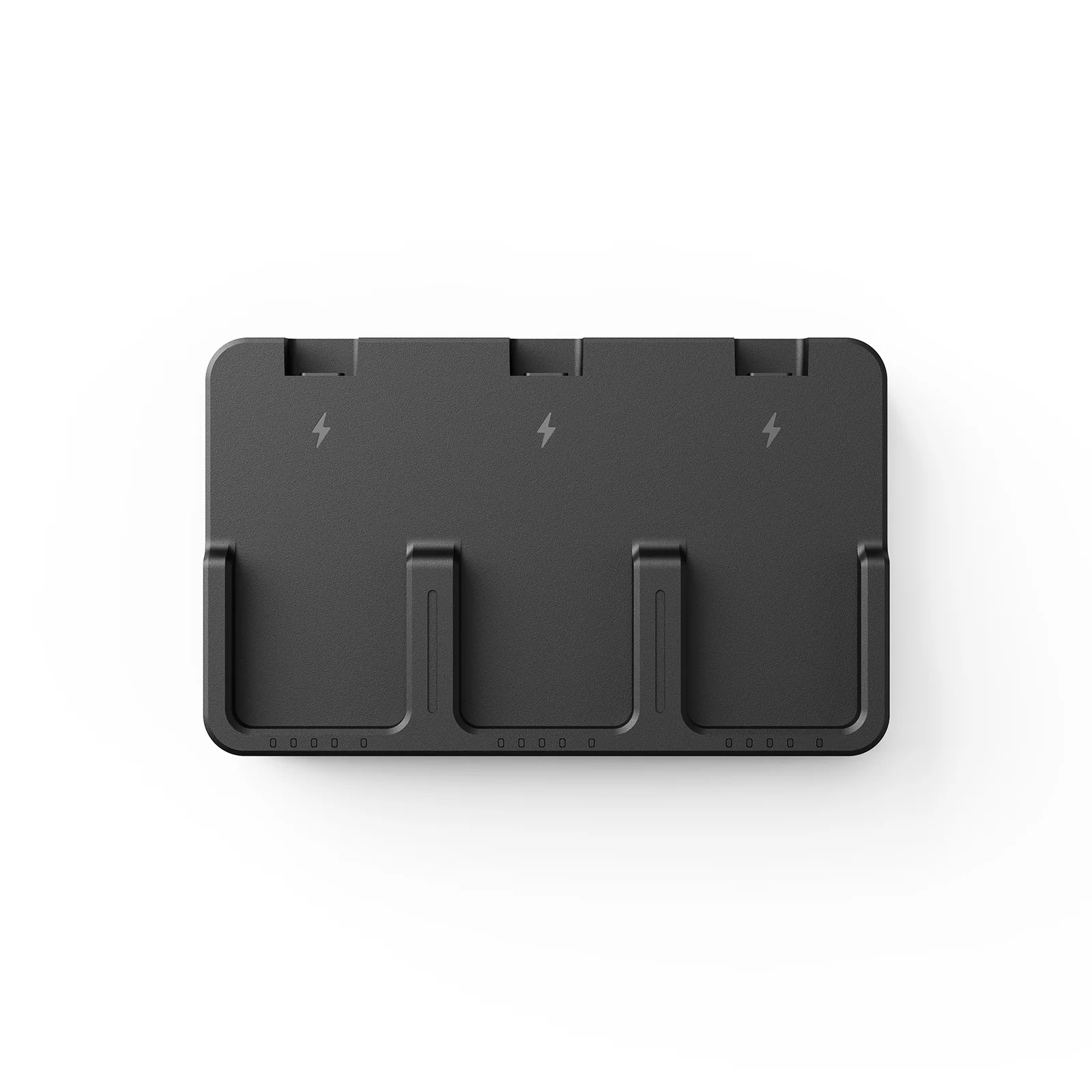

Aquila20 Three-Way Charging Hub
