The 0702 II Brushless Motor, a next-generation upgrade, is designed for unparalleled power and precision. Featuring cutting-edge tile-shaped magnets, these motors deliver up to 14.8% more thrust while virtually eliminating magnetic degradation from intense flights. Despite the upgrades, they maintain an ultra-lightweight design at just 1.55g, 1.47g, and 1.45g. When paired with Gemfan 1210 2-blade or 1208 3-blade propellers and ultra-light PEEK screws, this setup provides superior agility and performance. Perfectly tailored for 65mm whoops, the 0702 II ensures you dominate the skies with exceptional speed, precision, and control. Stay ahead of the competition with this ultimate racing solution!

Note: Exciting news! The 0702 II 30000KV Brushless Motor is just the same high-performance motor featured in the limited-edition Air65 Champion Version. If you missed out on the Champion Version, now’s your chance to build your own top-tier whoop with these cutting-edge motors!

Bullet Points

The second generation of 0702 motors are custom-designed for ultra-lightweight 65mm racing drones, delivering exceptional performance for extreme indoor FPV racing and aggressive freestyle flying.
Upgraded with advanced tile-shaped magnets, the 0702 II and 0702SE II motors deliver up to a 14.8% thrust increase while virtually eliminating magnetic degradation, even during intense flights.

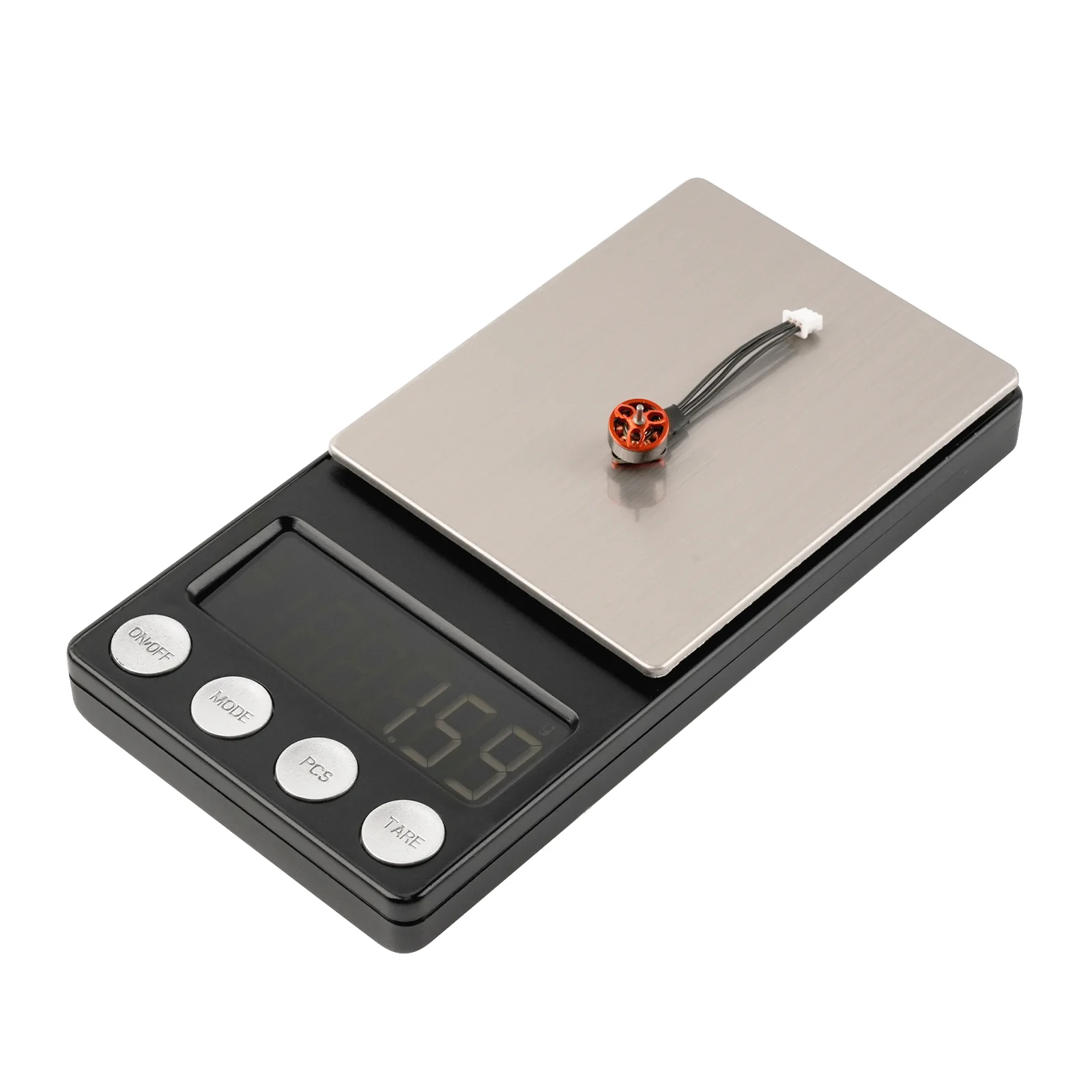

The 0702 II motors boast dual ball bearings and weighs just 1.55g. For pilots seeking higher speeds, the 30000KV provides more punch on the throttle, ideal for indoor FPV racing and aggressive flying.
The 0702SE II motors feature brass bushings, making it both lightweight at 1.45g (23000KV) and 1.47g (27000KV) and highly efficient. This more affordable and durable motor is the perfect choice for extremely lightweight installations.
Paired with the PEEK screws only weighing 0.10 grams/12pcs, it can save up to 0.46g for a build. With superior heat resistance, anti-friction, anti-shock, and anti-fatigue properties, the PEEK screws are both reliable and durable.
Combine these with the ultra-light Gemfan 1210 2-blade or Gemfan 1208 3-blade propellers, you can get robust power output and unparalleled responsiveness, perfect for racing and freestyle flight. Meet various needs of the lightweight whoop drone installation.

Specifications

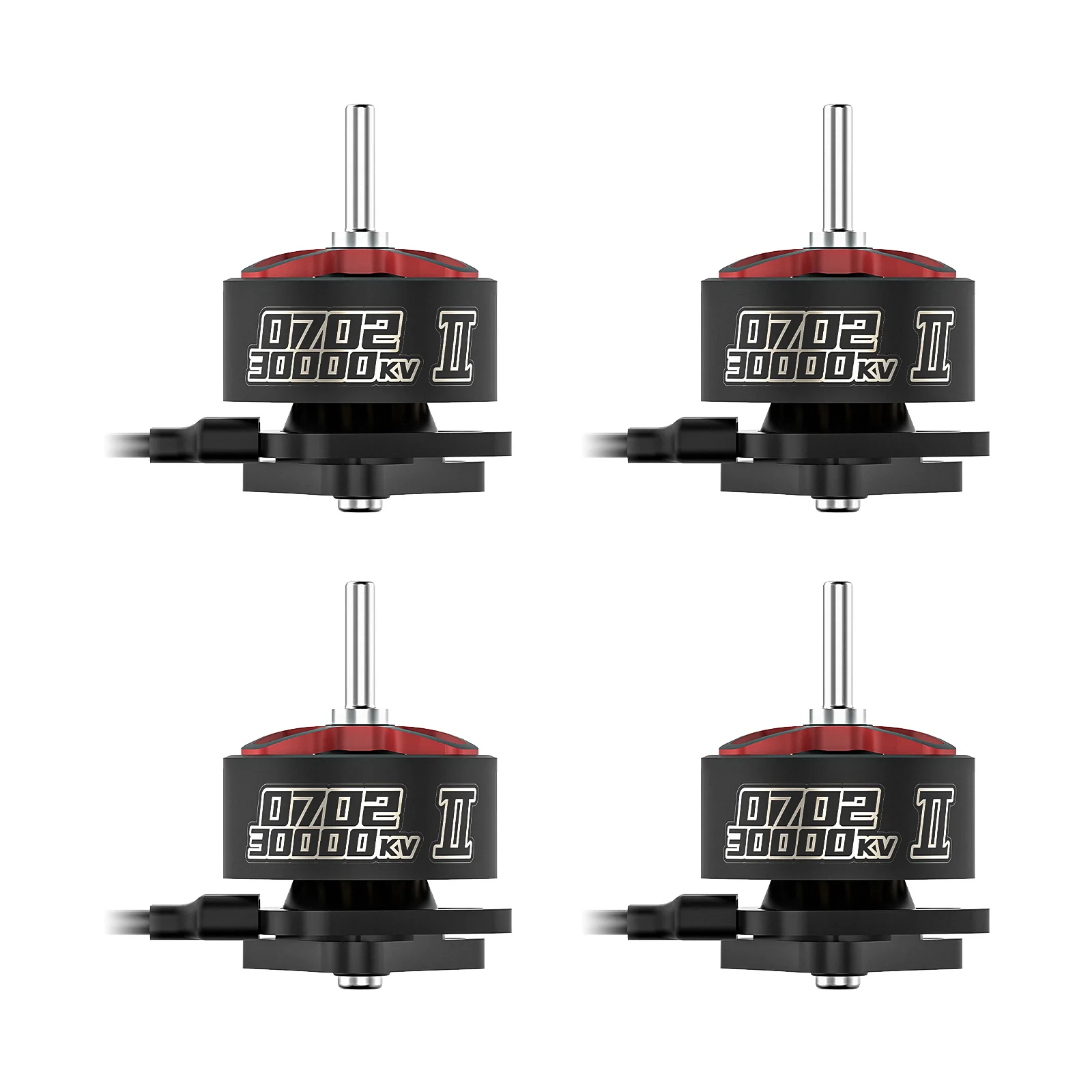

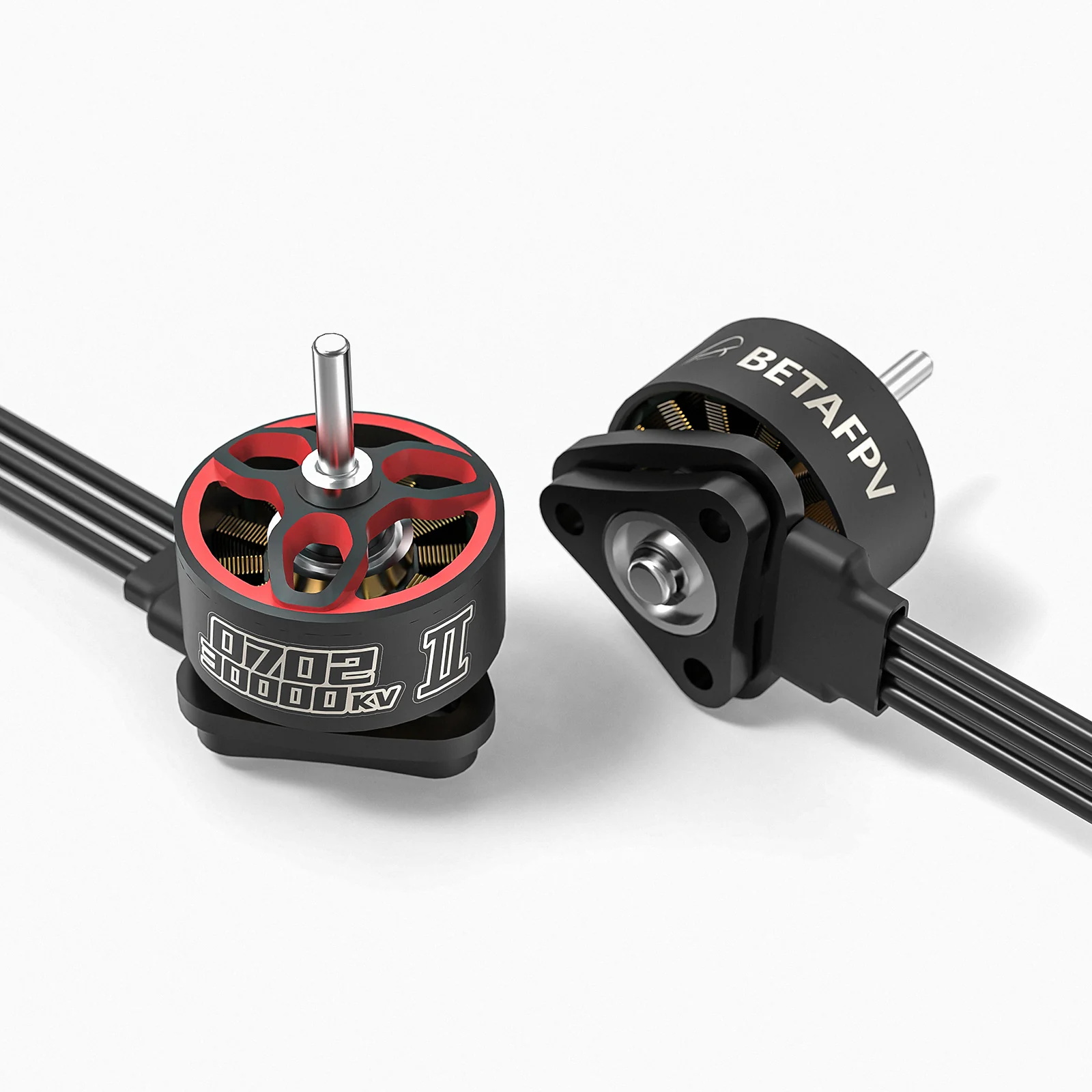

Item: 0702 II Brushless Motors
Motor KV (rpm/V): 30000KV, 27000KV, 23000KV
Bearing: Dual ball bearings (0702 II), Brass bushings (0702SE II)
Weight: 1.55g (0702 II), 1.45g (0702SE II 23000KV), 1.47g (0702SE II 27000KV)
Color: Black/Red (0702 II), Ice Blue (0702SE II)
Shaft Diameter: 1mm
Shaft Length: 4.2mm
Hole Distance: 6.6mm
Motor Mount Holes: M1.4
Input Voltage: 1S
Cable: 35mm (connector included), 30AWG

Dimensions of the 0702 II Brushless Motor:

Dimensions of the 0702SE II Brushless Motor:

The Second Generation, A Power Revolution

The upgraded 0702 II motors redefine performance with cutting-edge tile-shaped magnets, an optimized magnetic circuit design, and improved coil filling ratio. Compared to the original 0702, the 0702 II delivers a remarkable 14.8% boost in thrust, while the 0702SE II achieves gains of 13% (23000KV) and 12.7% (27000KV). Engineered to withstand the demands of intense flights, the new design virtually eliminates magnetic degradation. Whether you're aiming for Freestyle finesse or Racing supremacy, the BETAFPV 0702 II motors deliver unparalleled power and precision for your flight adventures.

	0702SE II \| 23000KV	0702SE \| 23000KV	0702SE II \| 27000KV	0702SE \| 27000KV	0702 II \| 30000KV	0702 \| 30000KV
Color	Ice blue				Black/red
Bearing	Brass bushings				Dual ball bearings
Motor KV	23000KV		27000KV		30000KV
Max Thrust (GF 1219S-3)	32g	28.3g	35.4g	31.4g	37.2g	32.4g
Thrust Enhancement Rate	13%		12.7%		14.8%
Weight (35mm connector included)	1.45g	1.42g	1.47g	1.44g	1.55g	1.52g
Weight (25mm cable included)	1.38g	1.35g	1.4g	1.37g	1.48g	1.45g
Shaft Diameter	1mm
Shaft Length	4.2mm
Motor Mount	3*M1.4-EQS Ø6.6mm
Input Voltage	1S
Cable	35mm (Connector included)

PEEK Screws

PEEK Screws is the ultimate solution for lightweight whoop, taking more grams off the build. PEEK screws only weigh 0.10 grams/12pcs, it can save up to 0.46 grams for a build that is using metal screws, while still being stronger and more durable than nylon screws. With more heat resistance, anti-friction, anti-shock, and anti-fatigue properties, the PEEK Screws are both reliable and durable. They are perfect for building 65mm/75mm size drones, including the lightweight Meteor series drone.

Note: Ensure proper tightening force when securing the screw to avoid damaging the nut.

0702 Brushless Motors

Propellers

For racing drones that require nimble and quick flight performance, the 1208 31mm 3-blade propeller is a suitable choice to pair with a 0702 II motor that has a value of either 27000KV or 30000KV. Alternatively, for freestyle drones that prioritize acrobatic maneuvers, the 1210 31mm 2-blade propeller is better suited for a 0702 motor with a value of 27000KV. The selection of appropriate propellers and motors is crucial to optimizing the flight performance of a racing drone, and can greatly enhance the overall racing experience for pilots.

0702 Brushless Motors

Recommended Parts

Propellers: GF 1210 2B Props, GF 1208 3B Props, GF 1219S 3B Props
Frame: Air65 frame, Meteor65 Pro frame
FC: Air FC, Matrix 1S 5IN1 FC
Battery: LAVA 1S 260mAh, LAVA 1S 300mAh

Load performance of the 0702 II Brushless Motor:

load performance of 0702 II Brushless Motor

Load performance of the 0702SE II Brushless Motor:

load performance of 0702SE II Brushless Motor

Package

4 * 0702 II / 0702SE II Brushless Motors
15 * M1.4*3 PEEK screws
12 * M1.4*3 metal screws
